Wood pattern color coated aluminum coil

Wood pattern aluminum coil

1. Light weight, good rigidity and high strength.

2, Good weather resistance and corrosion resistance. Aluminum trim coil wood grain has good corrosion resistance, and fluorocarbon paint can reach leg color for 25 years.

3. Good craftsmanship. Aluminum sheets can be machined into a variety of complex geometries such as flat, curved and spherical surfaces.

4. Uniform coating and various colors. Various colors can be adjusted according to the actual needs of the project.

5, not easy to stain, easy to clean and maintain. The non-adhesive nature of the fluorine coating film makes it difficult to adhere to the surface and has a good cleansing property.

6, Can be recycled and reused, is conducive to environmental protection. can be 100% recycled and the recycling value is higher.

Send Email

Chat Now

Introduction

product data

Application

Related Products

Introduction

The wood grain aluminum trim coil is obtained by coating wood grain onto aluminium coil. It is scanned by high resolution, recorded in a computer program and manually modified to achieve a more realistic and three-dimensional effect after advanced roll coating process.

It is durable and can be divided into indoor and outdoor coatings according to the environment and economy. The interior is generally a polyester coating with a dry film thickness of about 16-25 um and a shelf life of more than 10 years. The exterior is made of fluorocarbon coating, the dry film thickness is about 25-30um, and the warranty period is more than 15 years.

Wood grain aluminum coil is a high-grade metal decoration material that directly produces a simulated pattern on the surface of a certain thickness of aluminum coil, that is, it has a strong hand when touched. The wood grain aluminum substrate adopts single-layer aluminum coil for curtain wall such as 1100H24, 1060H24, 3003H24, 5005H24. The thickness of the aluminum coil (plate) is from 0.18-1.2mm and the width is up to 1650mm, which can meet the needs of different architectural designs.

product data

wooden color coated aluminum coil
Alloy No.	Thickness (mm)	Width (mm)	Temper
A1050,A1060, A1070,A1100,A1235,A1245	0.2-3.0	20-1900	O,H12,H22,H14,H24,H16,H26,H18
	4.0-12.0	1000-1900	H111,H112
A3003,A3004,A3105	0.2-4.0	20-1900	O,H12,H22,H14,H24,H16,H26,H18
	4.0-12.0	1000-1900	H111,H112
A5052,A5083,A5754,A5005	0.2-4.0	20-1900	O,H12,H22,H14,H24,H16,H26,H18
	4.0-12.0	1000-1900	H111,H112
A6061,A6082,A6063	0.8-3.0	20-1900	O
A8011,A1145,A1235	0.005-0.2	20-1700	O,,H18,H24
ID	76mm,152mm,200mm,300mm,505mm
Packing : Export wooden pallets, wooden case
Standards:ASTM-B209. EN573-1, GB/T3880.1-2006
Quality of material: totally free from defects like white rust, oil patches, roll marks, edge damage, camber, dents, holes, break lines, scratches and free from coil set
Application : Mainly used insigns, billboards, building exterior decoration, bus body, high-rise buildings and factories wall decoration, kitchen sink, lamp, fan leaves, with pieces of electronic, chemical equipment, sheet metal processing parts, deep drawing or spinning hollowware, welding parts, heat exchangers, bell surface and disk, plate, kitchenware, decorations, reflective devices, ect
MOQ	2.5 tons
Payment term:	TT,L/C
Delivery Time	15 days after 30% TT payment or receiving L/C copy
Kind attention : Specifications can be customized as the customer’s requirements.

Packaging and Delivery

Aluminum products of kailong meet the export standard. Plastic film and brown paper can be covered at customers’ need. What’s more, wooden case or wooden pallet is adopted to protect products from damage during the delivery.

There are two kinds of packaging, which is eye to wall or eye to sky. Customers can choose either of them for their convenience. Generally speaking, there are 2 tons in one package, and loading 18-22 tons in 1×20′ container, and 20-24 tons in 1×40′ container.

Application

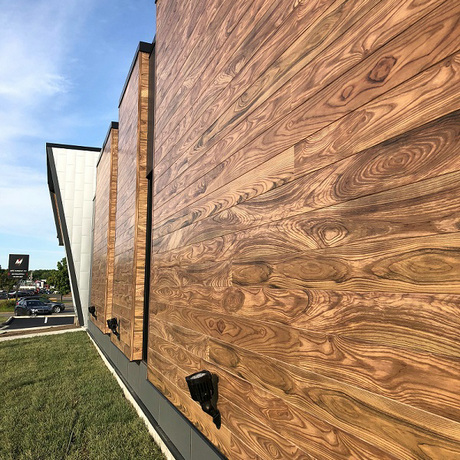

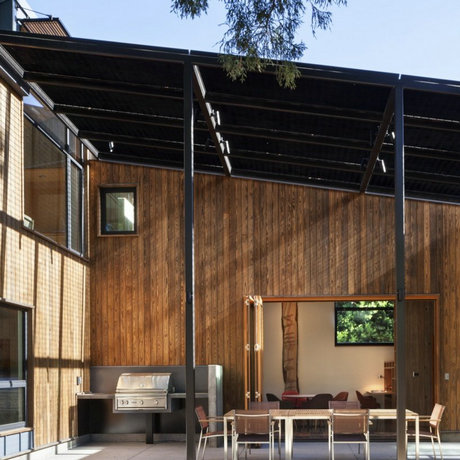

Outdoor building

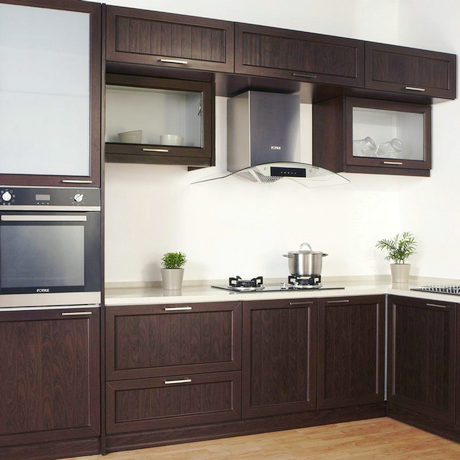

Kitchen

Wall panel
