Aluminum punched orifice plate from China Manufacturer

Aluminum punched orifice plate

Color： RAL,Pantong or customized color
Hole：minimum 1.0mm
Surface Treatment ：Anodized/PVDF Spraying/Powder/Prepaint
Coating Brand：PPG/Akzonobel/Nippon/Sunload
MOQ：1 pcs for sample, 100 square meter
Advantage ：Various Colors,Fashion Designed
Simple Installation,Low Maintenance cost
Protect from Sun light,Environmental Friendly
Fire Proof,Sound absorption
Tickness Range：0.5mm to 20mm available
Width Range：30mm to 1800mm
Drawing：50000m2 per month
Waranty：15 Years

Introduction

DATA

Application

Related Products

Introduction

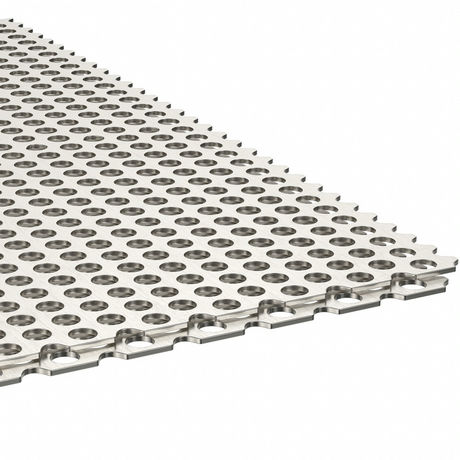

Perforated Aluminum Sheet is a sheet product that has been punched with a wide variety of hole sizes and patterns providing an aesthetic appeal. Perforated aluminum sheet offers savings in weight, passage of light, liquid, sound and air, while providing a decorative or ornamental effect. Perforated aluminum sheets are corrosive resistant and commonly used in interior and exterior design.

DATA

Size	1) Thickness: 0.1mm~12mm 2)Mesh Length:1.8m~2.44m 3)Mesh Width:0.8m/1.22m 4)Perforated area percent: from 7% to 83%
Hole forms	Diamond,round,square,rectangular ,triangle,hexagon,hexagonal,slotted,oval,club,cross,louver etc.
Surface Treatment	Hot dipped galvanized/Cold dipped galvanized/Paint Spraying/Coated/etc.
Color	Golden, silver, red, black, white, etc.
Margin	No margin,common margin,special requirement
Hole dia*pitch(mm)	Customize,such as:2.05.0,3.06.0
Dimensions(mm) (lengthwidththickness	Customize,such as:100020001.0,125025002.0..
Perforated pattern	Straight	Staggered:45 degree,60degree,120degree
Fabrication	Bend,coil,etc
Material	1060.3003.5052.6061
Features	corrosion resistant, long-lasting,winding resistant, smooth-surface.
Sample time	About 7 days
Delivery time	20-65 days after payment
Payment terms	T/T(30% deposit after confirm the order, 70% balance paid before shipment )
Packing	1.Pallets 2.Other special package according to customers’ requirements.

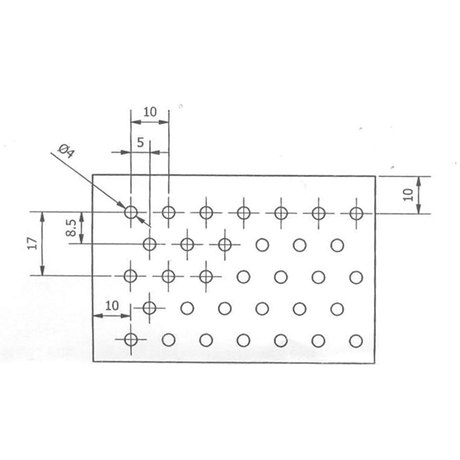

Hole Size of Aluminum Perforated Plate :

Hole Diameter		Staggered Centers	Sheet Thickness		Open Area
0.045″	1.14mm	0.066«	0.033-0.039″	0.84-0.99mm	37.00%
1/16″	1.59mm	3/32″	0.027-0.033″	0.68-0.84mm	41.00%
1/16″	1.59mm	1/8″	0.027-0.066″	0.68-1.68mm	23.00%
5/64″	1.98mm	1/8″	0.027-0.053″	0.68-1.35mm	35.00%
0.081″	2.06mm	1/8″	0.053-0.066″	1.35-1.68mm	38.00%
3/32″	2.38mm	5/32″	0.053-0.066″	1.35-1.68mm	33.00%
1/8″	3.17mm	3/16″	0.027-0.127″	0.68-3.23mm	40.00%
5/32″	3.97mm	3/16″	0.027-0.066″	0.68-1.68mm	63.00%
3/16″	4.76mm	¼”	0.027-0.127″	0.68-3.23mm	50.00%
1/4″	6.35mm	3/8″	0.033-0.111″, 0.25″	0.84-2.82mm, 6.35mm	40.00%
3/8″	9.52mm	½”	0.053-0.082″, 3/16″	1.35-2.08mm, 4.76mm	51.00%
3/8″	9.52mm	9/16″	0.059″, 0.119″	1.50mm, 3.02mm	40.00%
1/2″	12.70mm	11/16″	0.033-0.127″, 3/16″	0.84-3.23mm, 4.76mm	48.00%
1/4″ Hex	6.35mm Hex	0.285	0.027-0.033	0.68-0.84mm	76.00%
3/8″ Sq.	9.52mm Sq.	Cane«	0.053-0.066″	1.35-1.68mm	51.00%

Packaging and Delivery

Aluminum products of kailong meet the export standard. Plastic film and brown paper can be covered at customers’ need. What’s more, wooden case or wooden pallet is adopted to protect products from damage during the delivery.

There are two kinds of packaging, which is eye to wall or eye to sky. Customers can choose either of them for their convenience. Generally speaking, there are 2 tons in one package, and loading 18-22 tons in 1×20′ container, and 20-24 tons in 1×40′ container.

Application

1.Protective covers of the mechanical equipment
2.Sound insulation board
3.Ceilings
4.Speaker grille
5.The dust covers of food stuff, feeds and mine
6.The mesh of the shelves in the shopping mall
7.The punched sheet of granaries and so on

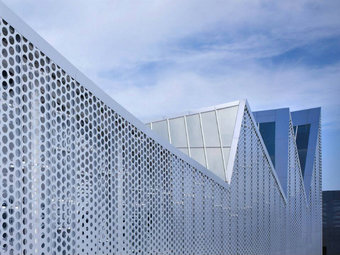

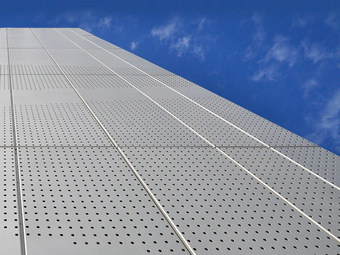

Building panel

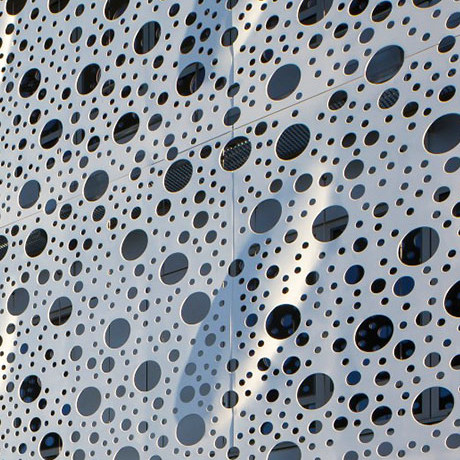

Wall decoration
