5000 series

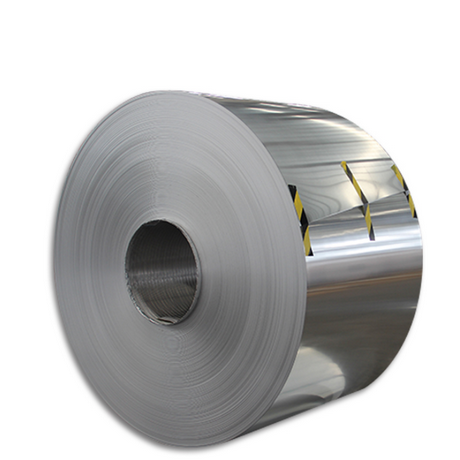

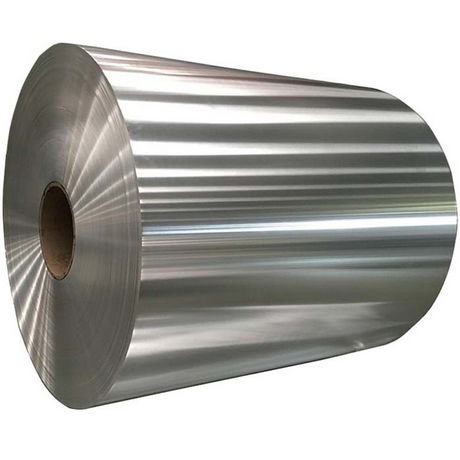

5083 Aluminum Coil

Alloy:5083
Temper:all available, H1X, H2X, H3X, O, HXXX
Width:100-2600mm
Thickness:0.2-8.0mm
Coil ID：75mm, 150mm, 200mm, 300mm, 400mm, 508mm or customized
Coil OD:per customer’s request
Surface：Mill finished and silvery aluminum，color coated, anodized, mirror finish,diamond , tread, brushed, wood grain, stucco embossed
Port of Loading:Qingdao or customized
Delivery Time：15-25 days
Certificated:ISO9001:2015,SGS,SABER

Send Email

Chat Now

Introduction

DATA

Application

Related Products

Introduction

The 5083 aluminum alloy is a high – magnesium alloy, which has good strength, corrosion resistance and good cutting ability in non – heat treatment alloy. The anodized surface is beautiful. Good performance of arc welding. The main alloy elements in 5083 alloy are magnesium, with good corrosion resistance and weldability, and moderate strength.

DATA

Chemical Elements and Content(max)
Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Others	Al
5005	0.4	0.4	0.2	0.2	0.5-1.1	0.1	0.25		Remains
5050	0.4	0.7	0.2	0.1	1.1-1.8	0.1	0.25		Remains
5052	0.45 (Si+Fe)		0.1	0.1	2.2-2.8	0.15-0.35	0.1		Remains
5056	0.3	0.4	0.1	0.05-0.2	4.5-5.6	0.05-0.2	0.1		Remains
5083	0.4	0.4	0.1	0.3-1.0	4.0-4.9	0.05-0.25	0.25		Remains
5086	0.4	0.5	0.1	0.2-0.7	3.5-4.5	0.05-0.25	0.25		Remains
5154	0.45 (Si+Fe)		0.1	0.1	3.1-3.9	0.15-0.35	0.2		Remains
5205	0.15	0.7	0.03-0.1	0.1	0.6-1	0.1	0.05		Remains
5252	0.08	0.1	0.1	0.1	22-2.8				Remains
5252	0.08	0.1	0.1	0.1	22-2.8				Remains
5254	0.45 (Si+Fe)		0.05	0.1	3.1-3.9	0.15-0.35	0.2		Remains
5356	0.50 (Si+Fe)		0.1	0.05-0.2	4.5-5.5	0.05-0.2	0.1		Remains
5357	0.12	0.17	0.2	0.15-0.45	0.8-1.2				Remains
5454	0.4 (Si+Fe)		0.1	0.5-1	2.4-3	0.05-0.2	0.25	Ti0.2	Remains
5456	0.4 (Si+Fe)		0.1	0.5-1	47-5.5	0.05-0.2	0.25	Ti0.2	Remains
5457	0.08	0.1	0.2	0.15-0.45	0.8-1.2				Remains
5457	0.08	0.1	0.2	0.15-0.45	0.8-1.2				Remains
5652	0.4 (Si+Fe)		0.04	0.1	2.2-2.8	0.15-0.35	0.1		Remains
5657	0.08	0.1	0.1	0.03	0.6-1		0.03		Remains
5657	0.08	0.1	0.1	0.03	0.6-1		0.03		Remains

Packaging and Delivery

5083 aluminum coil of Henan Kailong Aluminum. meet the export standard. Plastic film and brown paper can be covered at customers’ need. What’s more, wooden case or wooden pallet is adopted to protect products from damage during the delivery. There are two kinds of packaging, which is eye to wall or eye to sky. Customers can choose either of them for their convenience. Generally speaking, there are 2 tons in one package, and loading 20-28 tons in 1×20′ container（20ft GP:5898mm(Length)x2352mm(Width)x2393mm(Height).

Application

5083 aluminum coil can be applied to oil tanks or tubes on aircrafts, stamping parts on vehicles or ships, instruments, street lamp holders, rivets, hardware, electrical casings, unfired welded pressure vessels, heavy-duty truck/trailer assemblies, marine hulls, superstructures, drilling rigs, missile components, railroad cars, etc.

Bus body

Kitchen sink

Fan blades
