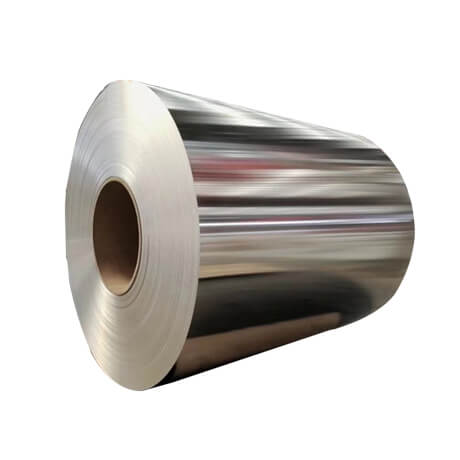

3102 Aluminum Coil
3000 series

3102 Aluminum Coil

Alloy:3102
Temper:all available, H1X, H2X, H3X, O, HXXX
Width:100-2600mm
Thickness:0.2-8.0mm
Coil ID:75mm, 150mm, 200mm, 300mm, 400mm, 508mm or customized
Coil OD:per customer’s request
Surface:Mill finished and silvery aluminum,color coated, anodized, mirror finish,diamond , tread, brushed, wood grain, stucco embossed
Port of Loading:Qingdao or customized
Delivery Time:15-25 days
Certificated:ISO9001:2015,SGS,SABER


Share:
Introduction
3102 aluminium alloy is an alloy in the wrought aluminium-manganese family (3000 or 3xxx series). It is one of the most lightly alloyed grades in the 3000 series, with at least 97.85% aluminium by weight. Like most other aluminium-manganese alloys, 3102 is a general-purpose alloy with moderate strength, good workability, and good corrosion resistance. Being lightly alloyed, it tends on the lower strength and higher corrosion resistance side. It can be cold worked to produce tempers with a higher strength but a lower ductility.
DATA
  Chemical Elements and Content(max)
Alloy Si Fe Cu Mn Mg Cr Zn Ti Ni Others Al
3003 0.5 0.5 4.9 0.9 1.8 - 0.25 0.15 - 0.15 Remainder
3004 0.3 0.7 0.25 1.5 1.3 - 0.25 - - - Remainder
3104 0.5 0.7 0.1 1.5 0.3 0.1 - - - - Remainder
3105 0.5 0.7 0.1 1.5 0.3 0.1 - - - - Remainder
Packaging and Delivery
3012 aluminum coil of Henan Kailong Aluminum. meet the export standard. Plastic film and brown paper can be covered at customers’ need. What’s more, wooden case or wooden pallet is adopted to protect products from damage during the delivery. There are two kinds of packaging, which is eye to wall or eye to sky. Customers can choose either of them for their convenience. Generally speaking, there are 2 tons in one package, and loading 20-28 tons in 1×20′ container(20ft GP:5898mm(Length)x2352mm(Width)x2393mm(Height).
Application
Construction material and building material roof panel,ceiling,partition wall,shutters,window blind,gate,balcony,wall,road marking,street signs,road protecting plate,highway protecting plate,bridge of barrier wall,scaffold,ship plate.
Electric machine components,protective plate,protective box,capacitor box,tank of power capacitor,electrolytic,condenser,variable of battery,volume shaft,loudspeaker framework,switch plate,semiconductor radiator,magnetic disk,motor frame,fan blade,electric cooker,cooling fin,heat sink.
Bus body
Bus body
Kitchen sink
Kitchen sink
Fan blades
Fan blades
