2000 series

2A12 Aluminum Coil

Alloy:2A12
Temper:O,H13,T4,T6,T451,T651,T72,T81,T851
Width:100-2600mm
Thickness:0.2-8.0mm
Coil ID：75mm, 150mm, 200mm, 300mm, 400mm, 508mm or customized
Coil OD:per customer’s request
Surface：Mill finished and silvery aluminum，color coated, anodized, mirror finish,diamond , tread, brushed, wood grain, stucco embossed
Port of Loading:Qingdao or customized
Delivery Time：15-25 days
Certificated:ISO9001:2015,SGS,SABER

Send Email

Chat Now

Introduction

product data

Application

Related Products

Introduction

The 2024 aluminum plate is a typical hard aluminum alloy in aluminum-copper-magnesium system. Its composition is reasonable and its comprehensive performance is better. The 2024 aluminum plate can be heat treated and strengthened. It has medium plasticity under quenching and rigid quenching.
2024 Aluminum sheet performance advantages:
1. High strength, widely used in mould, precision parts, etc
2. good heat resistance, can be used as working parts below 150℃
3. welding performance is good

product data

Chemical Elements and Content(max)
Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Others	Al
2011	0.4	0.7	5.0-6.0	-	-	-	0.3		Remains

2014	0.5-1.2	0.7	3.9-5.0	0.4-1.2	0.2-0.8	0.1	0.25		Remains

2017	0.8	0.7	3.5-4.5	0.4-1.0	0.2-0.8	0.1	0.25		Remains

2018	0.9	1	3.5-4.5	0.2	0.45-0.9	0.1	0.25	Ni:1.7・2.3	Remains
2024	0.5	0.5	3.8-4.9	0.3-0.9	1.2-1.8	0.1	0.25		Remains

2025	0.5-1.2	1	3.9-5.0	0.4-1.2	0.05	0.1	0.25		Remains

2117	0.8	0.7	2.2-3.0	0.2	0.2-0.5	0.1	0.25		Remains

2218	0.9	1	3.5-4.5	0.2	1.2-1.8	0.1	0.25	Ni:1.7-2.3	Remains
2618	0.25	0.9-1.3	1.9-2.7		1.3-1.8			Ni:0.9-1.2	Remains

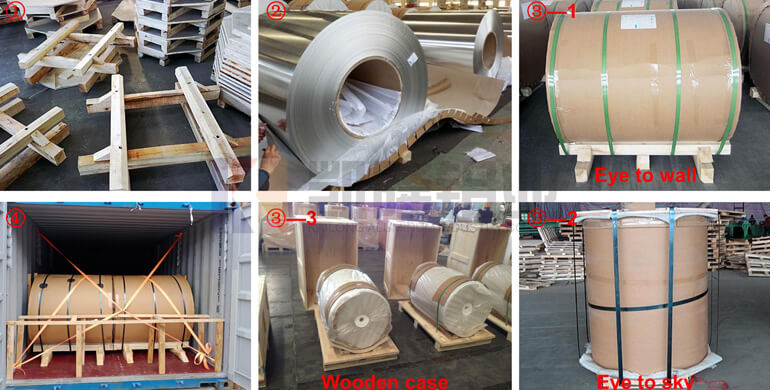

Packaging and Delivery

2A12 aluminum coil of Henan Kailong Aluminum. meet the export standard. Plastic film and brown paper can be covered at customers’ need. What’s more, wooden case or wooden pallet is adopted to protect products from damSage during the delivery. There are two kinds of packaging, which is eye to wall or eye to sky. Customers can choose either of them for their convenience. Generally speaking, there are 2 tons in one package, and loading 20-28 tons in 1×20′ container.

Application

2A12 is mainly used to make various high-load parts and components (but not stampings and forgings) such as skeleton parts, skins, partitions, ribs, spars, rivets and other working parts below 150 ℃ on aircraft.
The 2000 series alloy aluminum plate has high hardness, and the products are mainly used in aerospace and other fields. For example: 2024 is mainly used for propeller structural parts and aircraft skeleton; 2124 is mainly used for aircraft appearance and wings; 2224 is mainly used for aircraft structural parts; 2524 is mainly used for aircraft appearance and so on.

Bus body

Kitchen sink

Fan blades
