DC aluminum circle from China Manufacturer

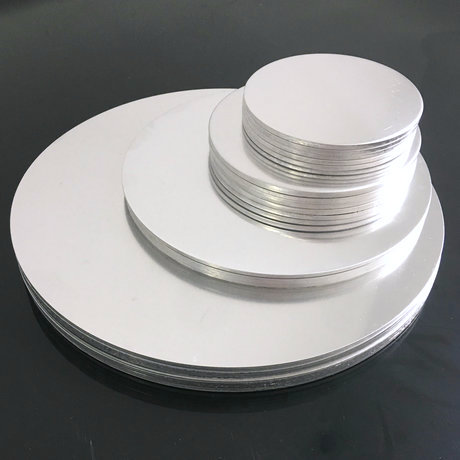

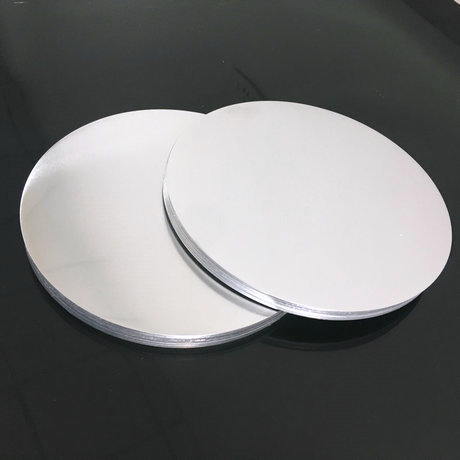

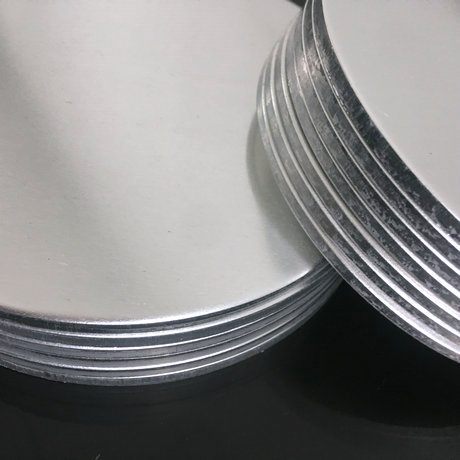

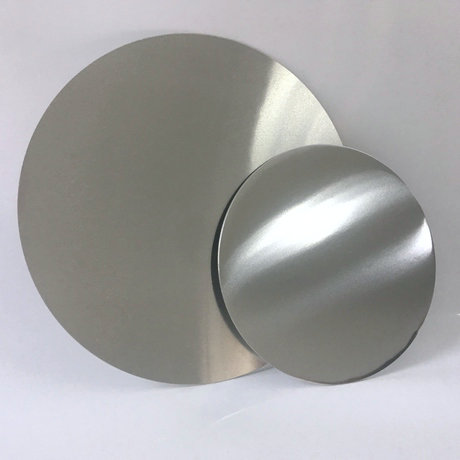

DC aluminum circle

1.Aluminum Disc Circle, deep drawing quality, good spinning quality,excellent forming and anodizing, no four ears;
2.Excellent reflectivity, good for Polishing;
3.Good anodized quality, suitable for hard anodizing and enameling;
4.Clean surface and smooth edge, hot rolled quality, fine grains and after deep drawing no looper lines;
5.Excellent pearl color anodizing.

Send Email

Chat Now

Introduction

DATA

Application

Related Products

Introduction

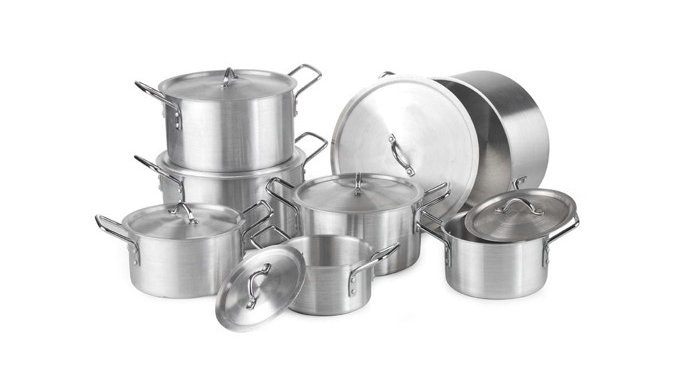

Our high quality Aluminum Disc Circle sheet can be used in the production of a variety of cookware products,such as for deep drawing cooking pot、spinning quality for kitchen utensils、for aluminum Non stick cookware、for cookware bottom、for non-stick cookware、for non-stick pan、for non-stick pan、for kitchenware etc.

Our Aluminum Disc Circle shaped aluminium sheet have many types of alloy,such as alloy grade 3003、AA 1050、alloy 1070 A1050 O、AA 1100 3003 1060 1200 HO alloy,also have AA3003 deep drawing quality hard anodising quality、alloy 3003 DDQ hard anodizing、alloy 3003 H12、3003 O temper hard anodized quality、1100 3003 anodized quality、alloy 1100 HO grade etc.

DATA

Alloy:	1050, 1060, 1070, 1100, 1200,3003,3004
Temper:	O, H12, H14
Thickness:	0.4~5.0mm
Diameter:	80~1600mm

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Other		Al
Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Single	Total	Al
1050	0.25	0.4	0.05	0.05	0.05	--	0.05	0.03	0.05	0.15	99.50 min
1060	0.25	0.35	0.05	0.03	0.03		0.05	0.03	0.05	0.15	99.60 min
1100	0.95		0.05-0.20	0.05	--	--	0.1	--	0.05	0.15	99.0min
3003	0.6	0.7	0.05~0.20	1.0~1.5	--	--	0.1	--	0.05	0.15	Remainder
3105	0.6	0.7	0.3	0.30-0.8	0.20-0.8	0.2	0.4	0.1	0.05	0.15	Remainder
5052	0.25	0.4	0.1	0.1	2.2-2.8	0.15-0.35	0.1	--	0.05	0.15	Remainder
5754	0.4	0.4	0.1	0.5	2.6-3.6	0.3	0.2	0.15	0.05	0.15	Remainder
6061	0.4-0.8	0.7	0.15-0.40	0.15	0.8-1.2	0.04-0.35	0.25	0.15	0.05	0.15	Remainder
6063	0.20-0.6	0.35	0.1	0.1	0.45-0.9	0.1	0.1	0.1	0.05	0.15	Remainder

Packaging and Delivery

1) Packing: Aluminum circle sheet is placed to wooden pallet or wooden case or aluminum plate case ,wrapped by water-proof craft paper perfectly , then fixed by iron narrow belt.
2) Port: Qingdao port or other main ports in China
3) Container: 20ft GP: 5898mm(Length)x2352mm(Width)x2393mm(Height) , loading 18~25 tons .
40ft GP: 12032mm(Length)x2352mm(Width)x2393mm(Height) , loading 20~28 tons.

Application

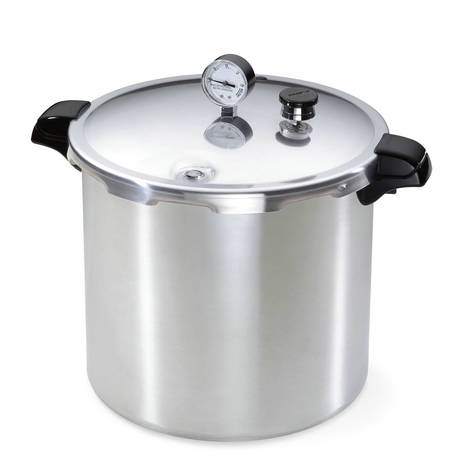

High pressure pot

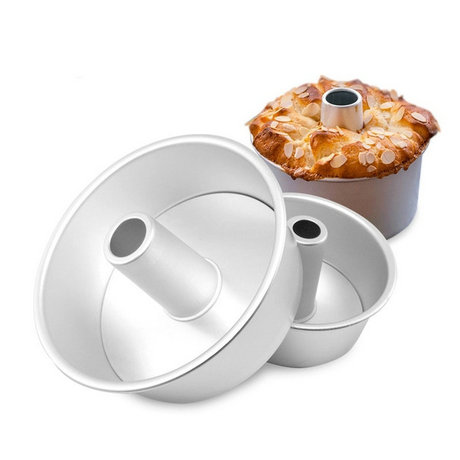

Chiffon mold

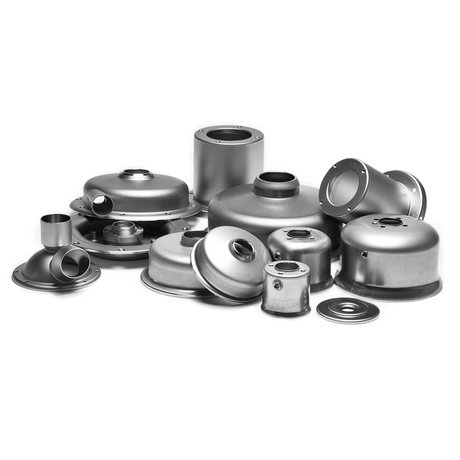

Metal stamping parts
